Wiring headache

This is for general posts and questions concerning only the Voyager XII (1200cc, Four-cylinder) Years 1986 thru 2003.

Moderators: the2knights, Highway Rider

Post Reply
User avatar
MonsterMash479
Streetster
Streetster
Posts: 19
Joined: Mon Jun 03, 2024 3:45 pm
Current bike(s): 1996 Kawasaki voyager xii
2023 aprilia rs660
Has liked: 2 times
Been liked: 5 times

Wiring headache

Post by MonsterMash479 »

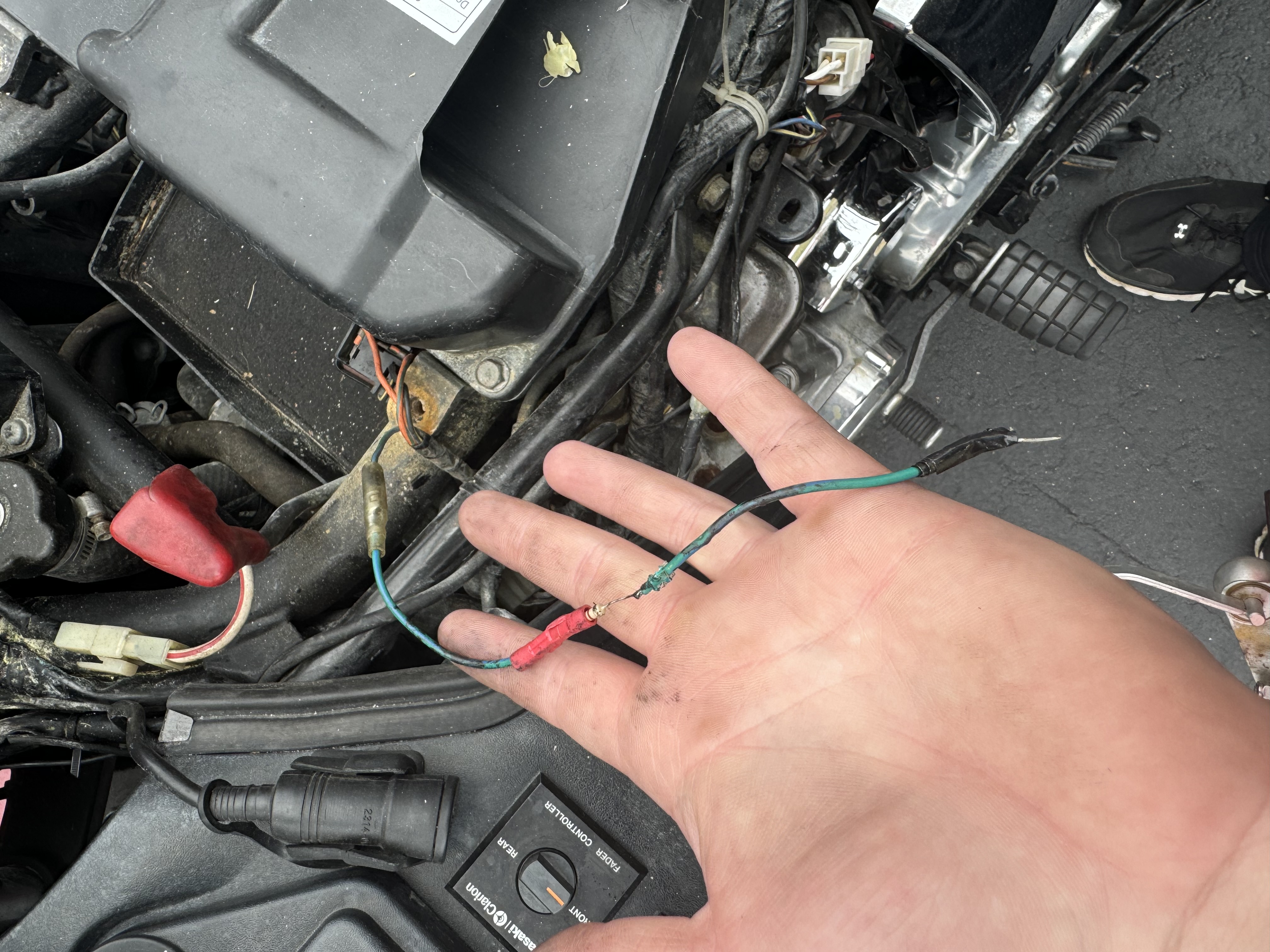

:bat: previous owner installes a bunch of bs leds around my bike and im currently in the process of stripping it down to return the harness to original spec, does anyone know what this wire would feed and why there is a resistor wired into it? It was wired to the positive battery post.
Attachments
User avatar
Scott-(Altoona, PA)
King of the Road
King of the Road
Posts: 1082
Joined: Mon Feb 18, 2008 1:22 pm
16
Current bike(s): 2001 Voyager XII
Location: Altoona, PA
Has liked: 83 times
Been liked: 136 times
Contact:

Re: Wiring headache

Post by Scott-(Altoona, PA) »

Just a quick guess but it could be they replaced the lead acid battery with a sealed battery and that was to shut off the light on the dash for the batter (low on water indicator)!
Again, just a quick guess on my part.
These users liked Scott-(Altoona, PA)'s post:
GrandpaDenny (Mon Sep 23, 2024 11:04 pm) • cushman eagle (Tue Sep 24, 2024 12:14 am) • triton28 (Tue Sep 24, 2024 12:28 am)
Rating: 33.33%
Mid-Atlantic Voyagers chapter secretary {"scribe"}
2001 Voyager XII
We may not know them all, but we owe them all! Thank a Veteran today!
cushman eagle
King of the Road
King of the Road
Posts: 1976
Joined: Sat Jan 22, 2011 10:08 pm
13
Current bike(s): '99 Kawasaki Voyager 1200
1958 Cushman Eagle restoration has been finished,and have put 3030 miles on her!
Location: Orrville,Ohio
Has liked: 850 times
Been liked: 287 times

Re: Wiring headache

Post by cushman eagle »

I agree with Scott :thmup: ,it does look like the low battery fluid indicator sensor :hmm:
'99 Voyager VXII,'58 Cushman Eagle
triton28
King of the Road
King of the Road
Posts: 1002
Joined: Fri Aug 23, 2013 1:32 am
11
Current bike(s): 1987 ZG-1200 B1
1987 ZG-1200 B1
1990 ZG-1200 B4
Location: Nova Scotia Canada
Has liked: 104 times
Been liked: 270 times

Re: Wiring headache

Post by triton28 »

To further explain the concept, the wire you show would go to any 12V + terminal, should there be no provision on the battery for a low electrolyte sensor to mount in, and that would keep the battery light off.
The battery light illuminates with low electrolyte OR no place to install the sensor. That is why the bypass you have in your hand is used to keep the light off.
User avatar
MonsterMash479
Streetster
Streetster
Posts: 19
Joined: Mon Jun 03, 2024 3:45 pm
Current bike(s): 1996 Kawasaki voyager xii
2023 aprilia rs660
Has liked: 2 times
Been liked: 5 times

Re: Wiring headache

Post by MonsterMash479 »

Ohhh okay thank you guys 👌
User avatar
Nails
King of the Road
King of the Road
Posts: 1769
Joined: Thu Feb 16, 2017 4:37 pm
7
Current bike(s): '97 XII
'00 XT350
'85 KLR 250
'82 Silverwing Sushiguzzi
Location: New Mexico Rockies
Has liked: 228 times
Been liked: 600 times

Re: Wiring headache

Post by Nails »

You can also remove the bulb, but that rather assumes you have another good reason to excavate it. Like, say, replacing the dash lights with LEDs. (I have another post somewhere about replacing this idiot light with a functionally-similar voltage meter, a clever unit the size of a bulb.)
--
Nails
